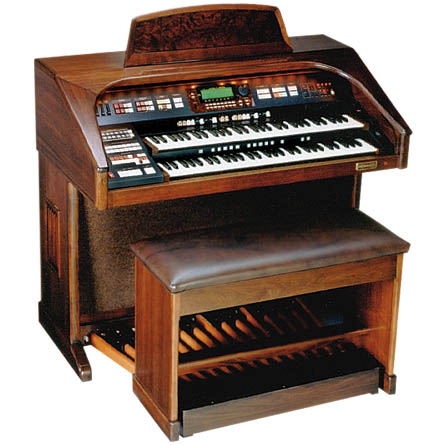

XH-272 The XH-272 Elegante needs no introduction as the king of pop organs.
With drawbars, rhythms, accompaniments, disk drive and that Hammond feel
and sound, it’s the home organ to which all others are compared. |
 |
|
Hammond XH-272 | ||
|
the Laurens Hammond Series | ||
|
SPECIFICATIONS XH-272 Elegante | ||
| Manuals | Two 61-note manuals | |
| Pedal Keyboard | 25-note radiating detachable pedalboard | |
| Sound Generator | Vase™ & Vase II™ Digital Technology | |
| Harmonic Drawbars™ | 9 pitches for each manual : 16',5
1/3',8',4',2 2/3',l 3/5',l 1/3',1') 2 pitches for pedal : 16',8 Adjustable voicing & attack for upper & lower manuals and pedals, Adjustable foldback for upper & lower manuals. | |
| Touch-response Percussion™ | Second
Harmonic, Third
Harmonic, Fast
Decay, Soft Touch
Tabs Adjustable Level, Velocity On/Off, Percussion Drawbar Cancel On/Off and Drawbar Level w/Percussion On/Off. | |
| Orchestral Voices | Flute, Pan Flute, Tenor Sax, Oboe,
Clarinet, French Horn, Trumpet, Muted Trumpet, Trombone, Synth Brass,
Violin, Harmonica, Accordion, Church Organ, Grand Piano, Harpsichord,
Electric Piano, Clavi, Jazz Guitar, Clean Guitar, Nylon String Guitar,
New Age Pad, Vibraphone, Glockenspiel, Marimba, Steel Drum, Banjo,
Chime On Upper, On Lower, Solo, Mono, Octave Down, Tone Control, Effect Control, and Chorus Touch Tabs Two Programmable Custom Voices. Voice Edit: Filter Cutoff, Filter Resonance, Vibrato Rate, Vibrato Depth, Vibrato Delay, Envelope Attack, Envelope Sustain, Envelope Release, Chorus Send Level, Fine Tune, Key Shift | |
| Custom Voice section | On Upper,
On Lower,
Solo,
Select, On
Display and Tone Control Touch
Tabs. 16 User Voices User Voice Edit: Voice Name, Filter Cutoff, Filter Resonance, Vibrato Rate, Vibrato Depth, Vibrato Delay, Envelope Attack, Envelope Sustain, Envelope Release, Chorus Send Level, Fine Tune, Key shift. | |
| Ensemble Voice Section | Upper String1 , Upper String2, Lower String, Lower Choir, Chorus , Touch Tabs, Programmable Voices, Chorus (Detune) Edit: Width, Offset, Depth | |
| Pedal Voice Section | Acoustic Bass, Electric Bass, Tuba,
24 Custom Voices, Octave Down,
Pedal to Lower,
Lower to Pedal, Touch
Tabs. Custom Voice Edit: Voice Name, Filter Cutoff, Filter Resonance, Vibrato Rate, Vibrato Depth, Vibrato Delay, Envelope Attack, Envelope Sustain, Envelope Release, Chorus Send Level, Fine Tune, Key shift. | |
| Auto-Vari ™ | 98 rhythms each with four progranmiable variations, Intro/Ending, Fill In 1, Fill In 2, Measure Selector, Adjustable Volume, Tempo Control Wheel, Touch Tempo™, Stop/Start, Touch Start, ProFoot Start/Stop. | |
| Rhythm Preset | 98 inbuilt presets, one for each rhythm. | |
| AutoBand Orchestra | 98 musical accompaniment styles each with four programmable variations, AutoChord, AutoBand 1, AutoBand 2, Auto Bass, Memory. | |
| Manual Drums | 9 Drum Kits plus Follow-the-Player-Rhythms. | |
| Animation | 6 Degrees of Vibrato & Chorus, Leslie On, Leslie Fast, Touch Tabs, Adjustable Slow & Fast Speeds, Rise, Fall & Brake Times, Horn/Bass Volume Balance, Microphone Settings. | |
| Digital Reverb | 4 Programs. | |
| Auto Arpeggio™ | ||
| ProChord ™ | 20 Patterns | |
| ProFoot ™ | Leslie Slow/Fast, Sustain, Orchestral Damper, Preset Forward, Preset Backward, ProChord, Rhythm Start/Stop, Glide | |
| Sustain | Variable for Upper Manual, Lower Manual and Pedals. | |
| Presets | 10 illuminated Presets to register the entire organ. 10 banks available. | |
| Information Center Display | LCD Display 240 x 64 characters, 16 numbered Touch Buttons for volume and function control. PLAY, MENU, DISPLAY HOLD, EDIT, PAGE UP and PAGE DOWN Touch Buttons. | |
| Disk Drive | Store Preset Banks and Songs. Play back SMF (Standard MIDI Files). GM/GS-compatible. Download additional Auto-Vari Styles and Rhythms. | |
| Headphone & Auxilliary IN/OUT Jacks | ||
| MIDI | Upper, Lower, Pedal and Mute Touch Tabs. Connections: IN, OUT, THRU. Selectable MIDI Channels. | |
| Pitch Bend / Modulation / Leslie© | Optional CU-2 Control Center | |
| 11-pin Leslie© connector | ||
| Amplifiers | 3x50-watt amplifiers. | |
| Closing Roll Top | ||
